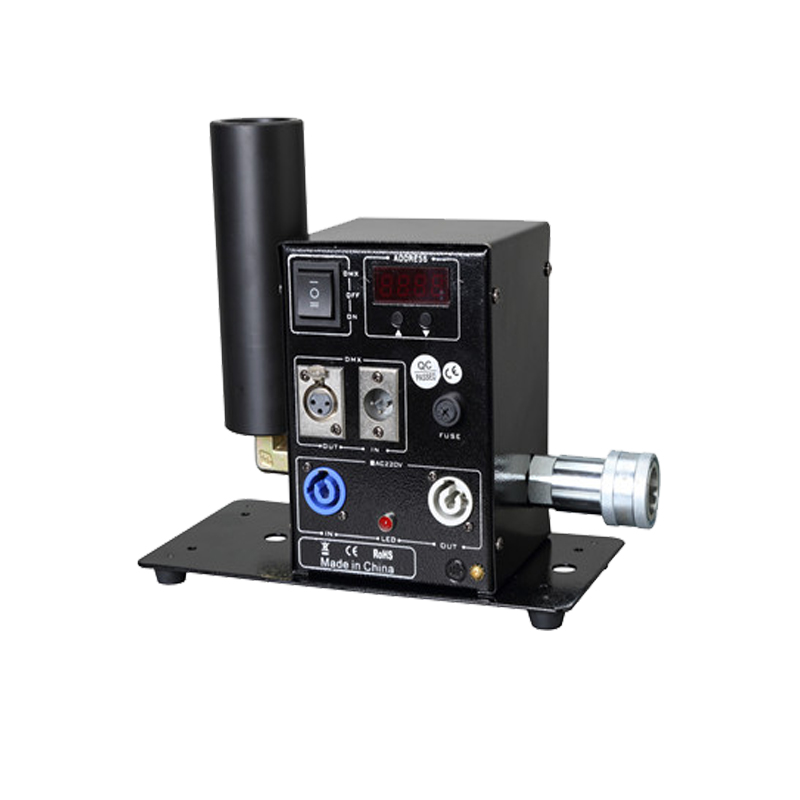

Digital Single Pipe CO2 Machine

Product specification:
Output: high output carbon dioxide gas
Control way: DMX512 control and Manual control
DMX channels: 1 channel CO2 spray (0-255) ON
Linkable: DMX/Power in/out (lockable powercon)
Voltage: AC110V/ 220V
Power: 200W
Reach: 8-10 meter
Pressure rating: up to 1400Psi
Hose length: 6meter with quick connector
Product warranty time: 1 year
Packing way: carton box with foam inside
Packing size: 31cm*30cm*25cm
Weight: 3.4kg
Gross weight: 7kg

Installs illustration:
1.Places the large CO2 Column on the corresponding position

2. Connect the C02 hose to gas bottle

3. Put down the bottle and keep it flat

4. Connect the machine with the gas bottle via the hose,hose one side connect with tank,the other side connect with the machine

5.Turn on the valve of the gas bottle

6.Connect the machine and the console

7. Before disassembling, firstly turn off the bottle valve,let out the gas which remain in the pipe,then turn off the power,lastly separate the connector of the gas bottle

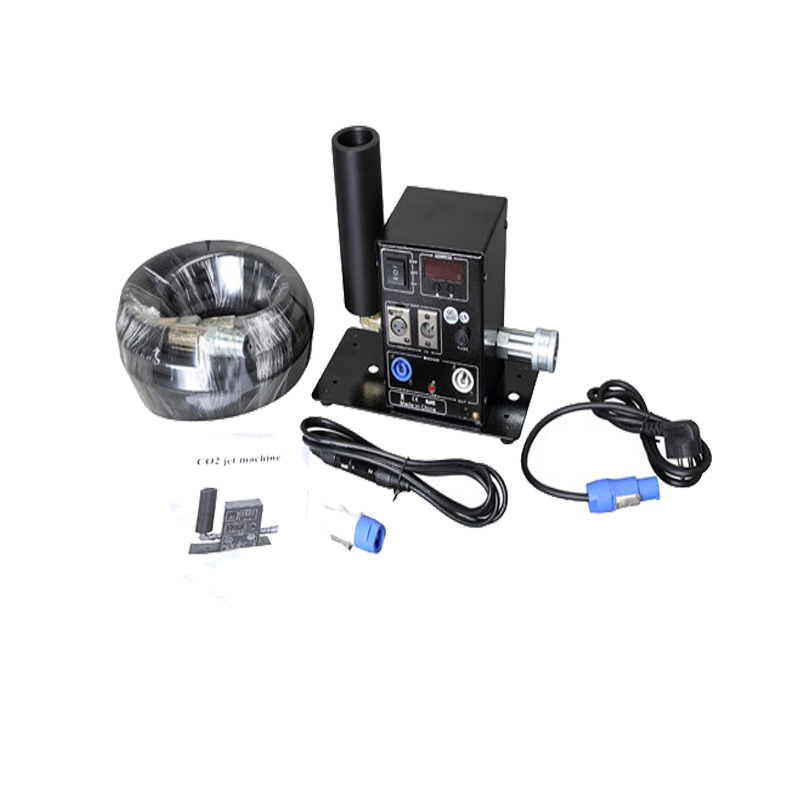

Packing list for each unit:
co2 jet machine
6 meter gas hose
2 meter DMX cable
power cable
manual book
